Cover assembly removal note
NOTE:
- Release the clips according to the lock/unlock mark on the cowl grille cover.

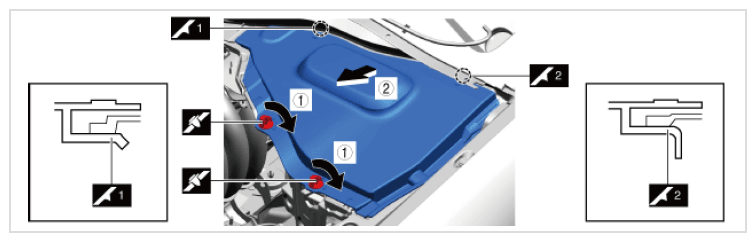

- Remove the cover assembly as shown in the figure below.
- the figure below shows the left side (same as right side).
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
| (1) (2)... |
Servicing procedure |
