Engine Compartment

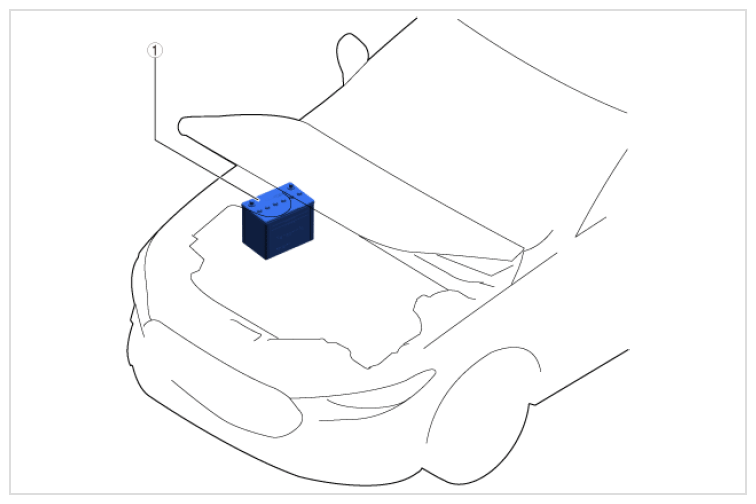

Fig 1: Charging System Components Location - Engine Compartment (H3T)
G16704346Courtesy of MAZDA MOTORS CORP.
CHARGING SYSTEM COMPONENT OPERATIONS (H3T)

Component No. Refer to
1 Battery
(See BATTERY REMOVAL/INSTALLATION ).
(See BATTERY INSPECTION ).
(See BATTERY RECHARGING ).
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
