Remove Cowl Grille: Notes

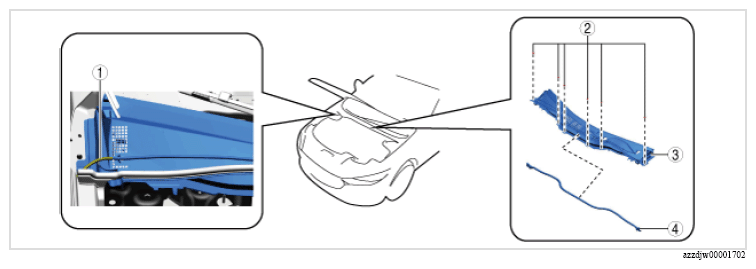

- Remove using the procedure shown in the figure.
PART NAME DESCRIPTION
| Step | Part name |
|---|---|
| 1 | Washer hose |
| 2 | Fastener |
| 3 | Cowl grille (See Cowl grille removal note ). |
| 4 | Cowl grille weatherstrip (See Cowl grille weatherstrip removal note ). |
