Remove Main Fuse (H3T)

Remove using the procedure shown in the figure.

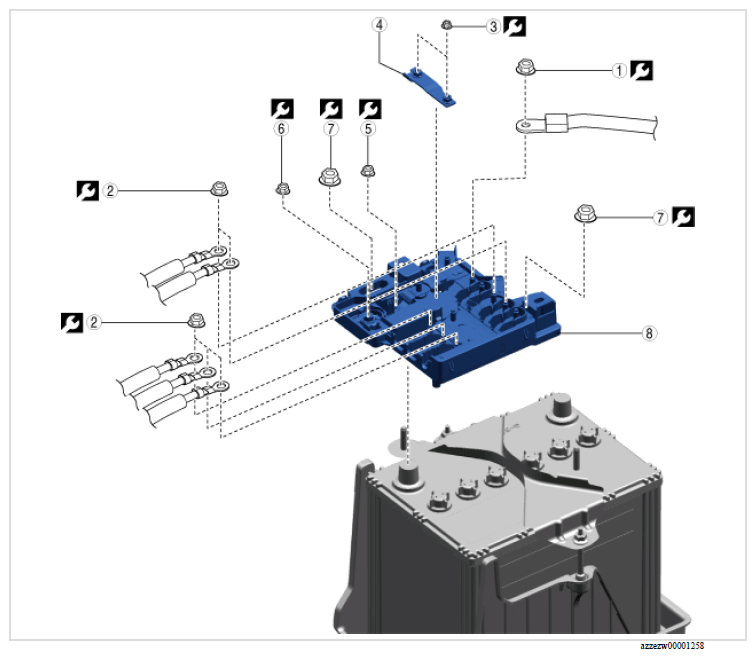

Fig 1: Main Fuse Components Location With Torque Specification (H3T)

G16713372

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Nut	9.5 N.m {95 kgf.cm, 82 in.lbf}
2	Nut	5.5 N.m {54 kgf.cm, 46 in.lbf}
3	Nut	5.5 N.m {54 kgf.cm, 46 in.lbf}
4	Busbar	-
5	Nut	13 N.m {130 kgf.cm, 113 in.lbf}
6	Nut	5 N.m {51 kgf.cm, 44 in.lbf}
7	Nut	9.5 N.m {95 kgf.cm, 82 in.lbf}
8	Main fuse	-
