Power window main switch component removal note

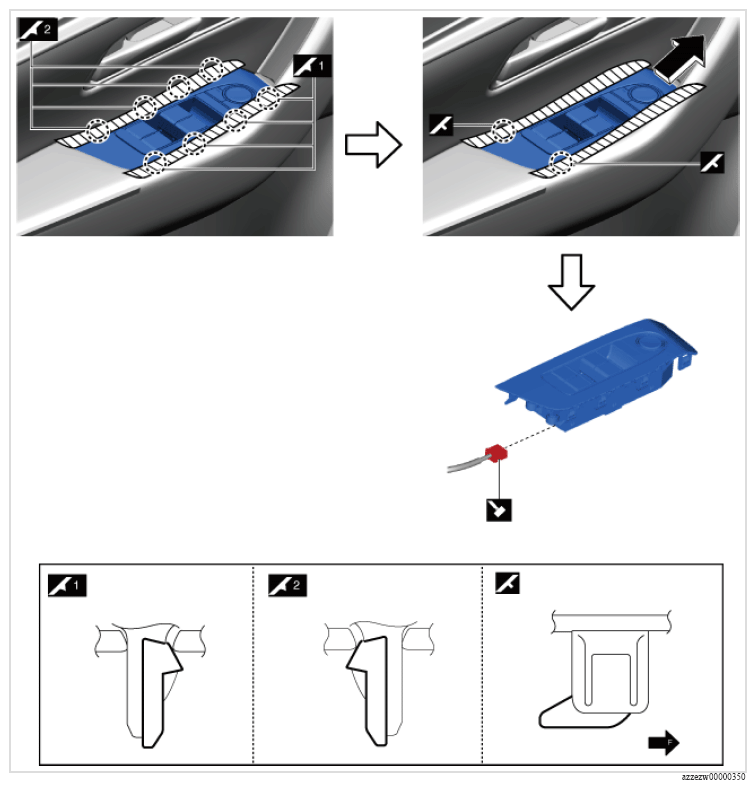

  1. Remove the power window main switch component as shown in the figure below.
G16715821Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
Protective tape attachment positions
