Remove Bracket: Notes
CAUTION:

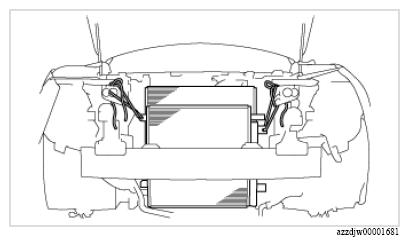

- Perform the procedure with the condenser secured to the body with a string.
- Remove using the procedure shown in the figure.

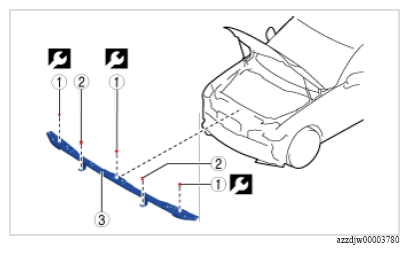

TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |
|---|---|---|
| 1 | Bolt | 11 N.m {110 kgf.cm, 95 in.lbf} |
| 2 | Fasteners | - |
| 3 | Bracket (See Bracket installation note ). |
- |
