Fuse block removal note

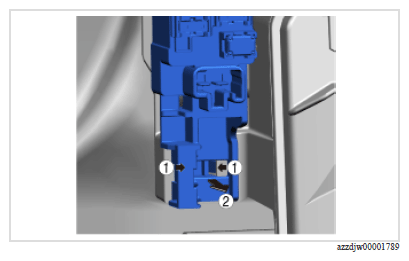

  1. Remove the fuse block as shown in the figure.
G16713363Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
