Front Door Speaker Inspection: Notes
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the front door speaker connector. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

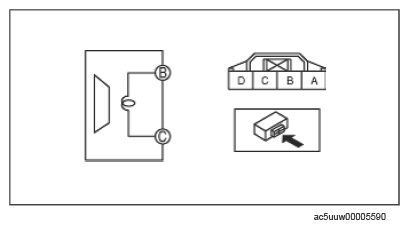

- Verify that the resistance and continuity between the front door speaker terminals is as indicated in the table.
- If not as indicated in the table, replace the front door speaker.
