AudioPilot® MICROPHONE REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

AudioPilot® is a registered trademark of Bose® Corporation.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Disconnect the connector.

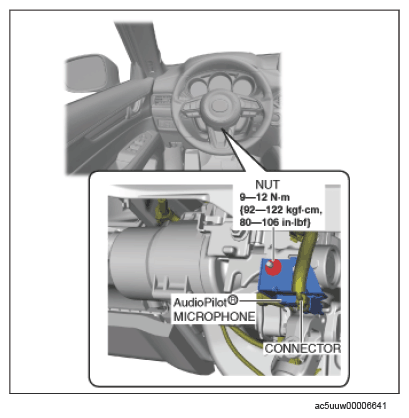

Fig 1: AudioPilot® Microphone Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the nut.
Remove the AudioPilot® microphone.
Install in the reverse order of removal.
