Front Brake Mounting Support Removal/Installation [With Single Piston Floating Caliper]: Notes
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
Replacement Part
| Dust boot Quantity: 2 Location of use: Front brake mounting support |
Oil and Chemical Type
| Rubber grease (Orange) Type: NIGLUBE RX-2 |
Brake grease (Brown) Type: Molykote 7439 |
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

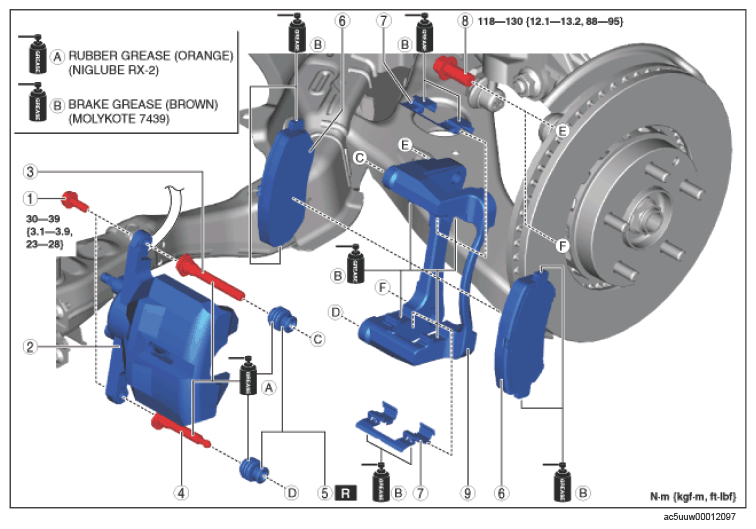

Fig 1: Front Brake Mounting Support Components Location With Torque Specification (With Single Piston Floating Caliper)
FRONT BRAKE MOUNTING SUPPORT COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Bolt |
| 2 | Front brake caliper (See Front Brake Caliper Removal Note .) |
| 3 | Slide pin (main) |
| 4 | Slide pin (sub) |
| 5 | Dust boot |
| 6 | Disc pad component |
| 7 | Guide plate (See Guide Plate Installation Note .) |
| 8 | Bolt |
| 9 | Mounting support |
