Front Brake Disc Removal/Installation [With Single Piston Floating Caliper]: Notes

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

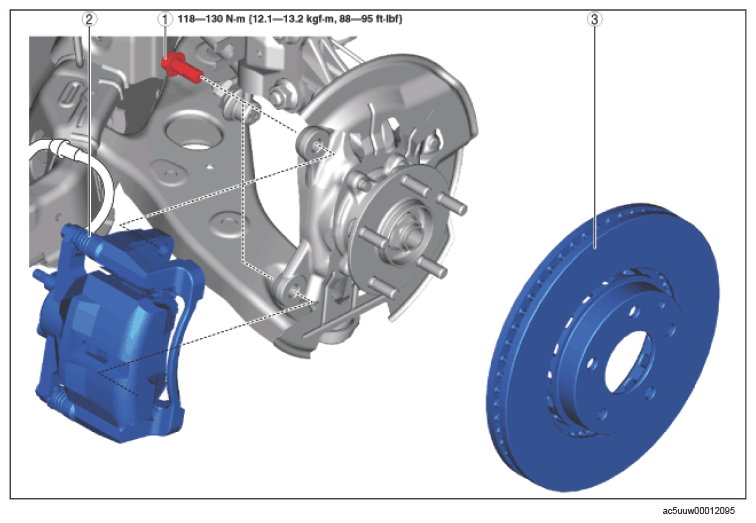

Fig 1: Front Brake Disc Components Location With Torque Specification (With Single Piston Floating Caliper)

Courtesy of MAZDA MOTORS CORP.

FRONT BRAKE DISC COMPONENT OPERATIONS

Component No.	Refer to
1	Bolt
2	Front brake caliper component (See Front Brake Caliper Component Removal Note .) (See Front Brake Caliper Component Installation Note .)
3	Disc plate
