Remove Windshield Wiper Motor And Link

1. Remove using the procedure shown in the figure.

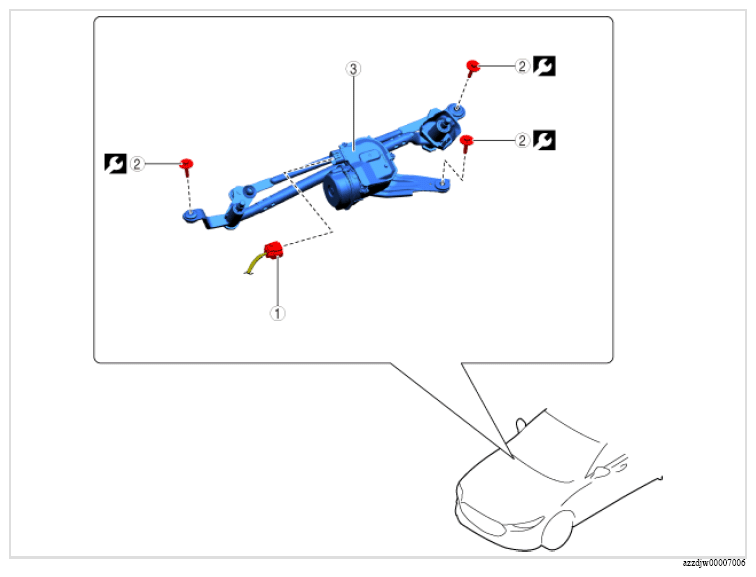

Fig 1: Windshield Wiper Motor And Link, Connector And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Connector	-
2	Bolt	8 N.m {82 kgf.cm, 71 in.lbf}
3	Windshield wiper motor and link	-
