Fastener D Removal Note

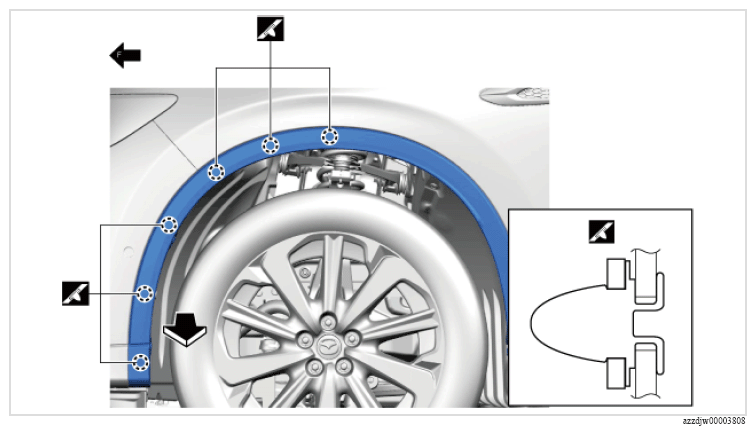

  1. Partially peel back the front over fender upper until fasteners D and bolts B can be removed as shown in the figure.
    • Figure also shows the left side (same for the right side).
    G16691934Courtesy of MAZDA MOTORS CORP.
  2. Remove fasteners D.
