Remove Insulator (Front No. 1): Notes

1. Remove in the order indicated in the table.

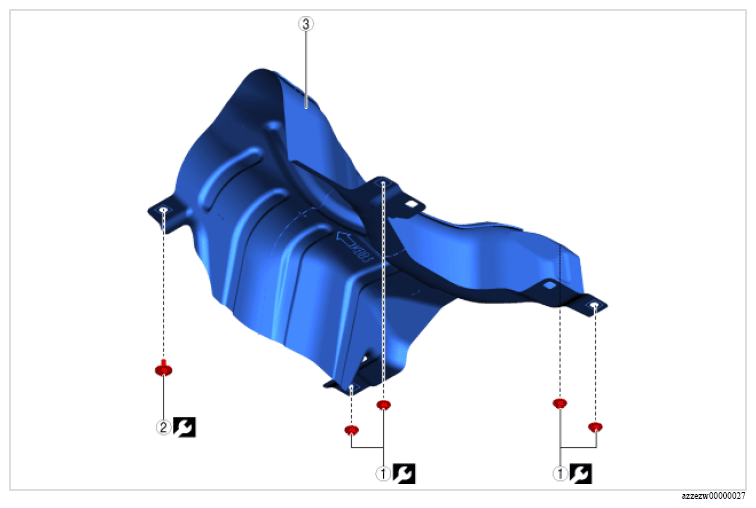

Fig 1: Insulator (Front No.) Bolt And Nut With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Nut (See Nut and bolt installation note ).	9.5 N.m {95 kgf.cm, 82 in.lbf}
2	Bolt (See Nut and bolt installation note ).	9.5 N.m {95 kgf.cm, 82 in.lbf}
3	Insulator (front No. 1) (See INSULATOR (FRONT NO. 1) INSTALLATION NOTE ).	-
