Remove Throttle Body

  1. Remove in the order indicated in the table.

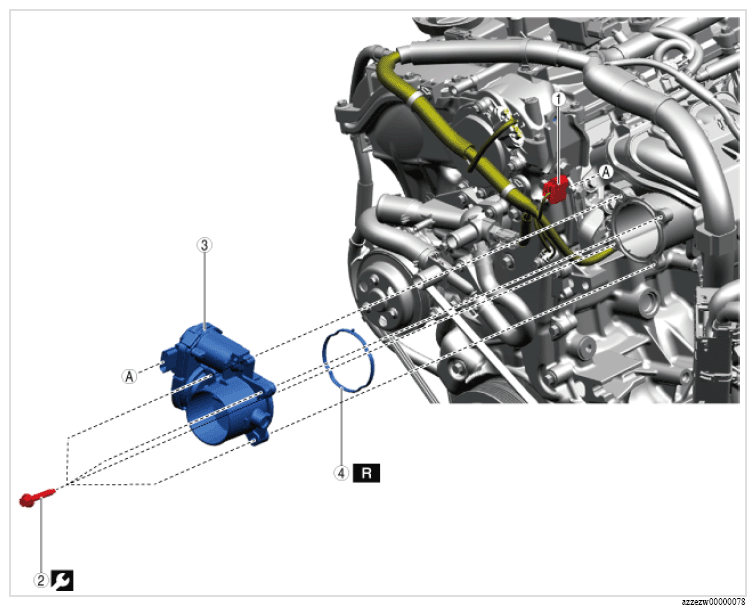

    Fig 1: Throttle Body Bolt With Torque Specifications
    G16702141Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Step Part name
    1 Connector - -
    2 Bolt - 9.5 N.m {97 kgf.cm, 84 in.lbf}
    3 Throttle body - -
    4 Gasket Replacement part -
