Remove Knock Sensor

  1. Remove in the order indicated in the table.

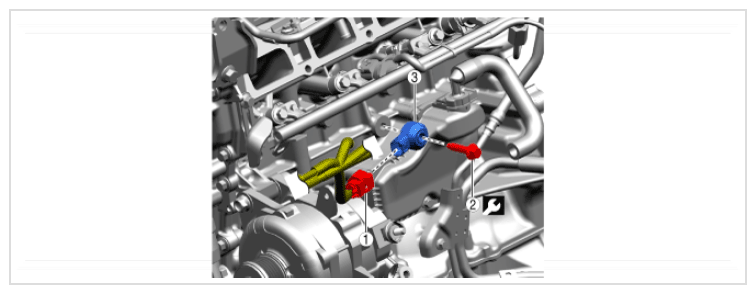

Fig 1: Knock Sensor Bolt With Torque Specifications
G16707662Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Connector -
2 Bolt 20 N.m {2.05 kgf.m, 14.75 ft.lbf}
3 Knock sensor -
