Engine Oil Level Sensor Removal/Installation [PYUL]
>>
Remove Engine Oil Level Sensor
Remove Engine Oil Level Sensor
Remove in the order indicated in the table.

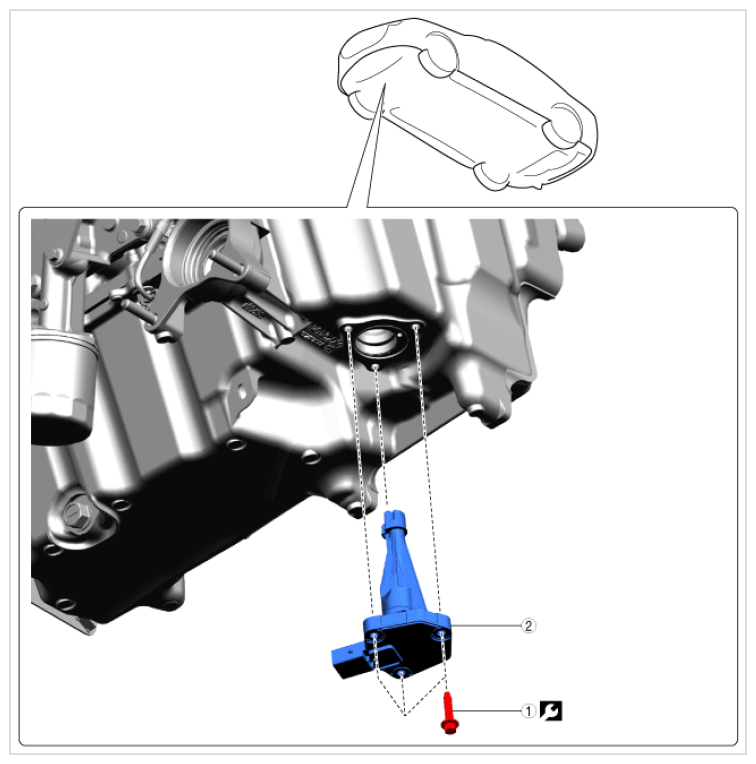

Fig 1: Engine Oil Level Sensor Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS
Step
Part name
1
Bolt
9 N.m {92 kgf.cm, 80 in.lb}
2
Engine oil level sensor
-
Courtesy of MAZDA MOTORS CORP.
