Washer Hose Installation Note

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

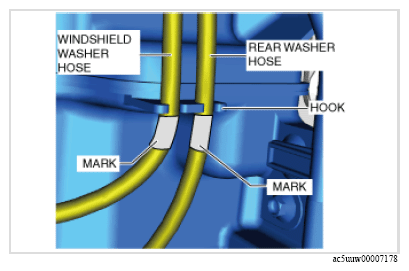

When installing the washer hoses to the washer tank hooks, install them with the upper end of the marks aligned to the hooks.

Courtesy of MAZDA MOTORS CORP.
