Blower Motor Removal/Installation

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the blower motor connector.

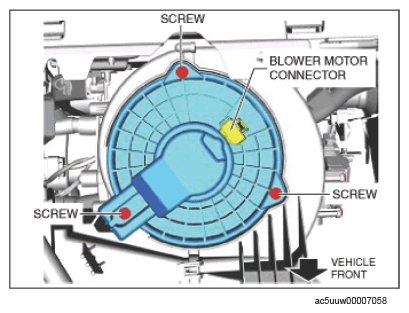

    G15640957Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the blower motor.

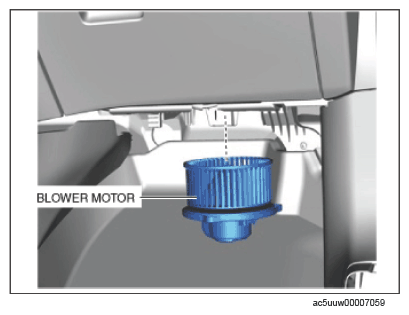

    G15640958Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
