Hood Latch Switch Inspection
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Disconnect the hood latch switch connector. (See HOOD LATCH REMOVAL/INSTALLATION .)

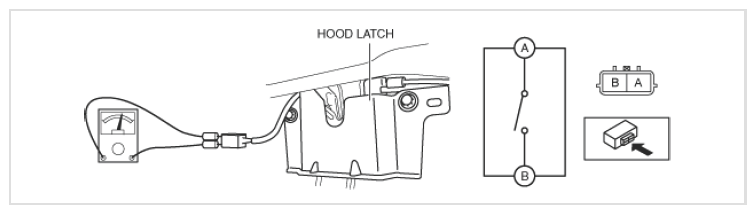

- Verify that the continuity is as indicated in the table.
NOTE:
- Inspect the continuity when the hood is open and closed.
- If the operation as indicated in the table cannot be verified, replace the hood latch.
