Remove Set Plate: Notes

  1. Remove in the order indicated in the table.

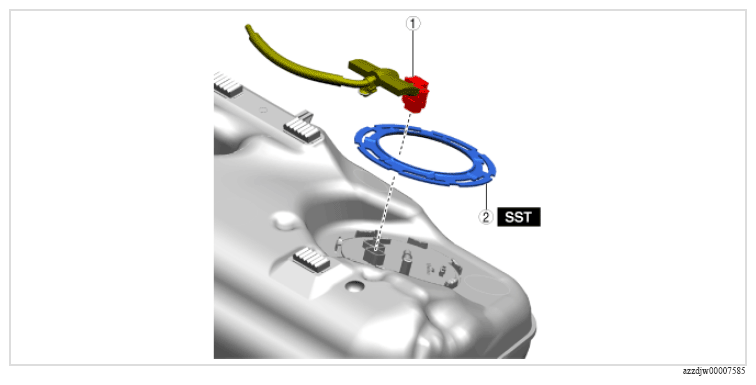

    G16702274Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Connector -
2 Set plate
(See SET PLATE REMOVAL NOTE )		 49 UN31 0123
