Remove ECM Component

Remove in the order indicated in the table.

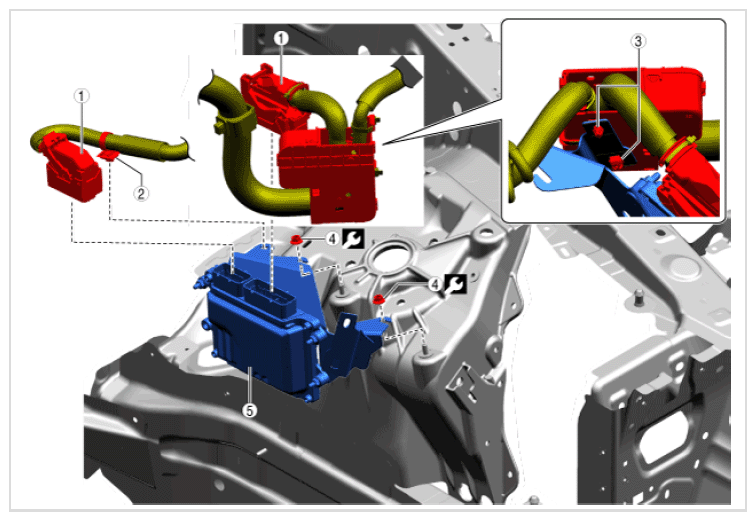

Fig 1: ECM Component Nut With Torque Specifications

G16707403

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Connector	-
2	Wiring harness clip	-
3	Wiring harness clip	-
4	Nut	9.5 N.m {97 kgf.m, 84 ft.lb}
5	ECM component	-
