Remove Middle Pipe

Remove in the order indicated in the table.

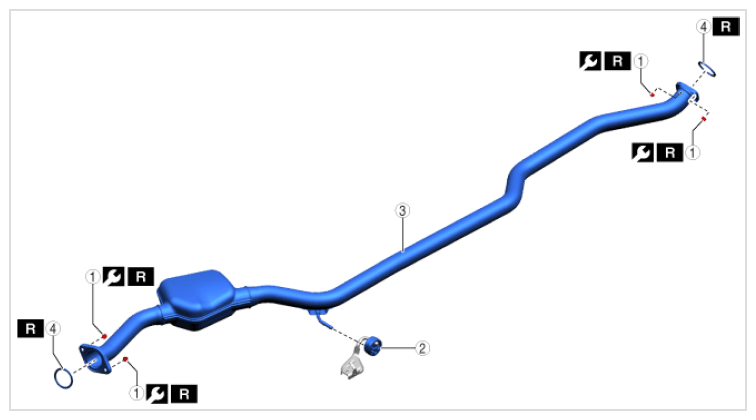

Fig 1: Middle Pipe Nut With Torque Specifications

G16707262

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Nut		44.5 N.m {4.55 kgf.m, 32.8 ft.lb}
2	Rubber	-	-
3	Middle pipe	-	-
4	Gasket		-
