Lower Engine Component

Remove in the order indicated in the table.

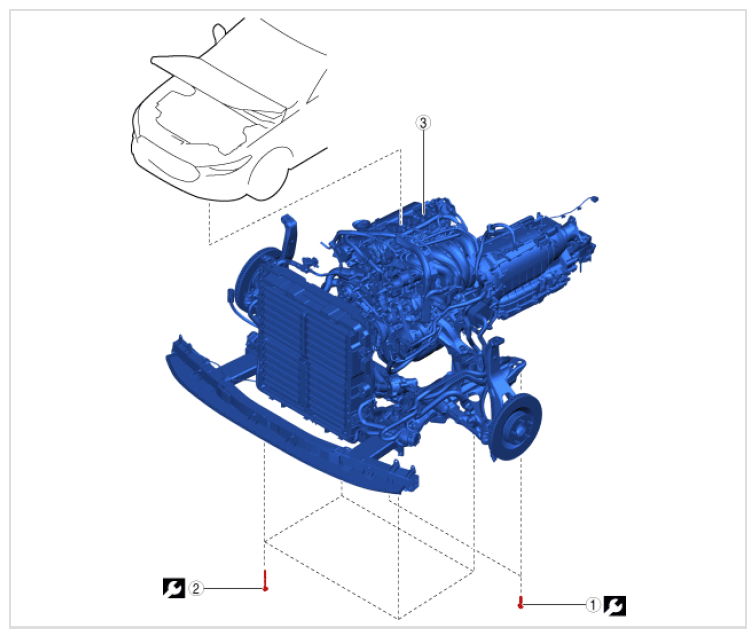

Fig 1: Engine Component And Bolts With Torque Specifications

G16707316

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Bolt	210.5 N.m {21.45 kgf.m, 155.1 ft.lb}
2	Bolt	83 N.m {8.45 kgf.m, 61.05 ft.lb}
3	Engine component	-
