Connector connection note
CAUTION:
- Do not touch the ECM connector terminal. The terminal is extremely thin and can be damaged by touching it.
- If the lever is moved with the ECM connector inserted at an angle, the connector itself may be damaged. Verify that the ECM connector is inserted straight.

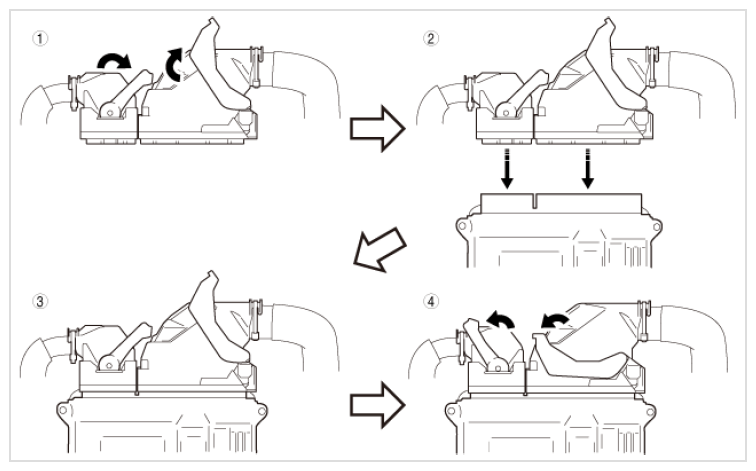

- Connect the connector as shown in the figure below.
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| (1) (2)... | Servicing procedure |
