Front CROSSMEMBER Removal/Installation: Notes

CAUTION:

• If the front ABS wheel-speed sensor wiring harness is pulled by mistake when performing this procedure, it could cause open circuit. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
• If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged. After disconnecting the steering shaft, secure the steering wheel using tape or cable to prevent it from rotating.
• Do not allow the dust boot of the front stabilizer control link to touch the body, the front shock absorber and coil spring, and the hand tool. Otherwise, the dust boot of the front stabilizer control link could be damaged.

1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
2. Disconnect the rubber from the bracket.

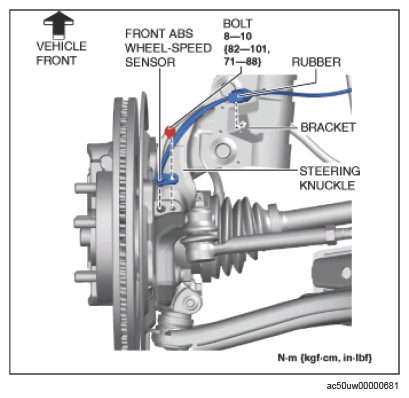

   Fig 1: Front ABS Wheel-Speed Sensor Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
3. Disconnect the front ABS wheel-speed sensor wiring harness on the steering knuckle and set it aside so that it does not interfere with the servicing.
4. Remove the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G VIN M] .) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G VIN Y] .)
5. Remove the following parts.
   1. Front under cover No. 1 (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
   2. Front under cover No. 2 (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
6. Disconnect the tie-rod end from the steering knuckle. (See TIE-ROD END REPLACEMENT .)
7. Disconnect the front stabilizer control link (front stabilizer side).
   Fig 2: Front Stabilizer Control Link Nut With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
8. Disconnect the front lower arm ball joint from the steering knuckle. (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
9. Remove the gusset.

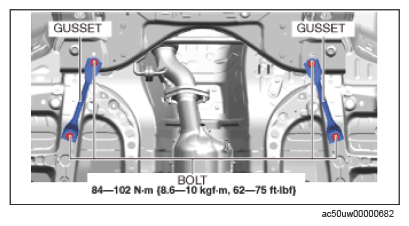

   Fig 3: Gusset Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

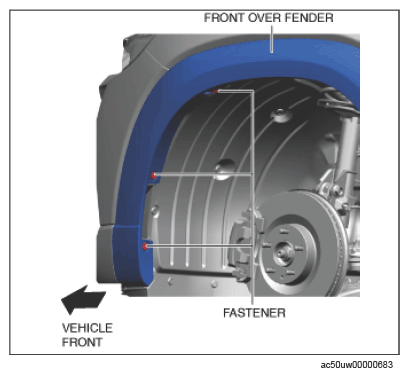

10. Remove the fastener shown in the figure below and slightly bend back the front over fender.

    Courtesy of MAZDA MOTORS CORP.

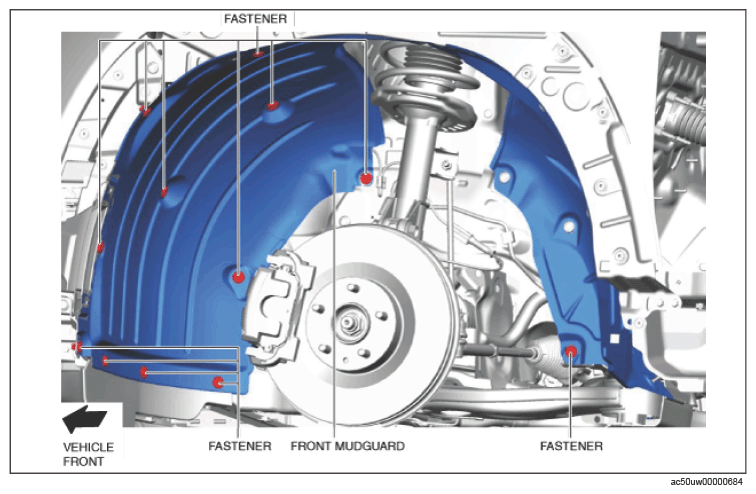

11. Remove the fastener shown in the figure below and slightly bend back the front mudguard.

    Courtesy of MAZDA MOTORS CORP.

12. Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION .)
13. Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION .)
14. Disconnect the front crossmember extension.

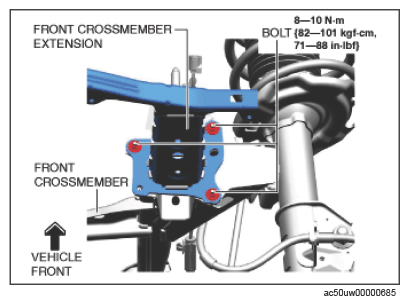

    Fig 4: Front Crossmember Extension Bolt With Torque Specification

    Courtesy of MAZDA MOTORS CORP.
15. Suspend the front crossmember extension using a cable.

    Courtesy of MAZDA MOTORS CORP.

16. Disconnect the hanger rubber from the front crossmember and set it aside.

    Courtesy of MAZDA MOTORS CORP.

17. Remove the joint cover. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION .)
18. Disconnect the intermediate shaft (lower side) from the steering gear and linkage. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION .)
19. Remove the bolt shown in the figure below. (See NO. 1 ENGINE MOUNT RUBBER, FRONT CROSSMEMBER COMPONENT INSTALLATION NOTE .)

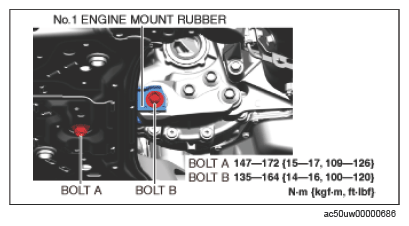

    Fig 5: No. 1 Engine Mount Rubber Bolts With Torque Specification

    Courtesy of MAZDA MOTORS CORP.
20. Remove the front crossmember component. (See FRONT CROSSMEMBER COMPONENT REMOVAL NOTE .) (See NO. 1 ENGINE MOUNT RUBBER, FRONT CROSSMEMBER COMPONENT INSTALLATION NOTE .)
    Fig 6: Front Crossmember Component Bolt With Torque Specification

    Courtesy of MAZDA MOTORS CORP.

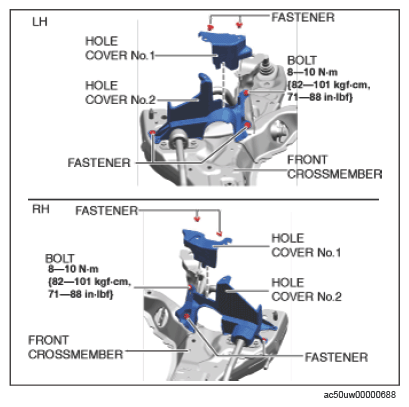

21. Remove the hole cover No. 1 and hole cover No. 2.

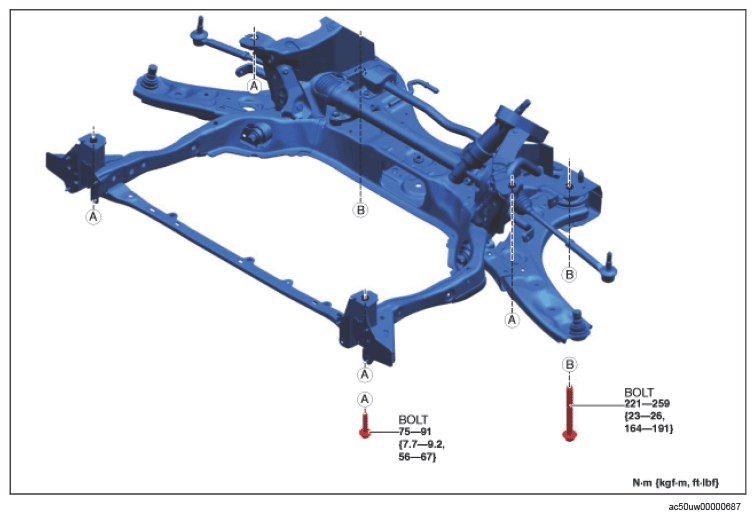

    Fig 7: Front Crossmember Bolts With Torque Specification

    Courtesy of MAZDA MOTORS CORP.
22. Remove in the order shown in the figure below.
23. Install in the reverse order of removal. (See SUSPENSION LINKS INSTALLATION NOTE .)
24. If the front crossmember is replaced, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

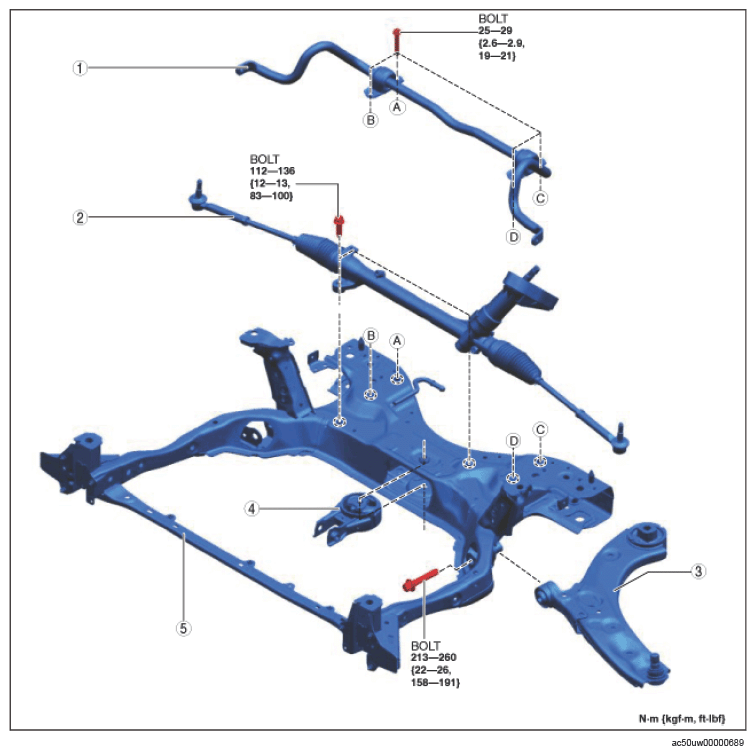

Fig 8: Front Crossmember Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

FRONT CROSSMEMBER COMPONENT OPERATIONS

Component No.	Refer to
1	Front stabilizer component (See FRONT STABILIZER REMOVAL .) (See FRONT STABILIZER INSTALLATION .)
2	Steering gear and linkage (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)
3	Front lower arm (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
4	No. 1 engine mount rubber (See NO. 1 ENGINE MOUNT RUBBER, FRONT CROSSMEMBER COMPONENT INSTALLATION NOTE .)
5	Front crossmember
