Transfer Bracket Installation Note
WARNING: This page is about a different car, the 2024 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

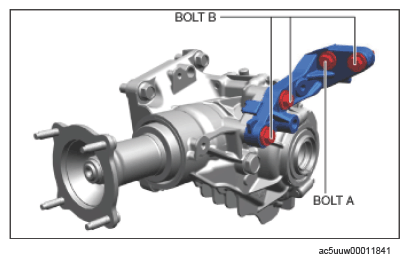

- Install the transfer bracket to the transfer and temporarily tighten bolts A and B.
 Courtesy of MAZDA MOTORS CORP.
|
- Completely tighten bolts A and B in order.
Tightening torque
38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
