Front Lower Arm Bushing Removal Note

WARNING: This page is about a different car, the 2024 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

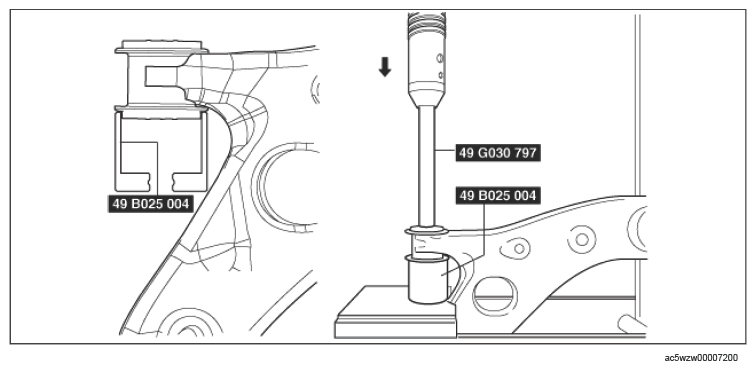

  1. Remove the front lower arm bushing using the SSTs and the press.
    G15630524Courtesy of MAZDA MOTORS CORP.
  2. Wipe off any dirt of oil on the front lower arm bushing installation area.
