Fuel-Filler Pipe Installation Note

  1. Temporarily install the fuel-filler pipe to the vehicle-side stud bolt.

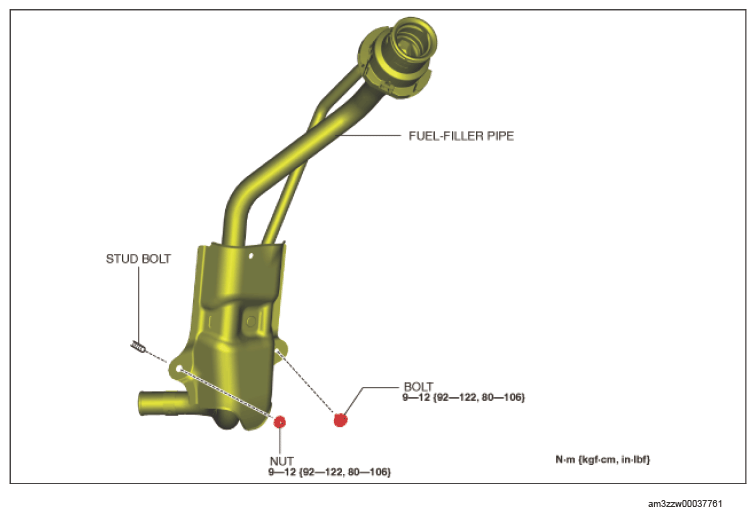

    Fig 1: Fuel-Filler Pipe, Stud Bolt, Nut And Bolt With Torque Specification
    G14579392Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten bolt.
  3. Completely tighten the nut.
  4. Completely tighten bolt.
