Headliner Removal/Installation: Notes

NOTE:
  • Surrounding parts can be removed without having to remove the headliner from the vehicle. If the headliner is not to be removed from the vehicle, refer to [Procedure For Temporarily Setting Headliner In Vehicle]. (See PROCEDURE FOR TEMPORARILY SETTING HEADLINER IN VEHICLE .)
  1. Remove the head restraint.
  2. Fully recline the passenger-side front seat.
  3. Remove the driver-side front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Remove the driver-side front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  5. Perform the following procedure.
    1. Switch the ignition off.
    2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  6. Remove the driver-side front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  7. Remove the following parts:
    1. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    2. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
    3. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    5. Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .)
    6. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    7. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    8. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    9. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    10. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    11. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    12. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    13. Rear seat belt lower anchor (See REAR SEAT BELT REMOVAL/INSTALLATION .)
    14. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    15. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    16. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    17. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
    18. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    19. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

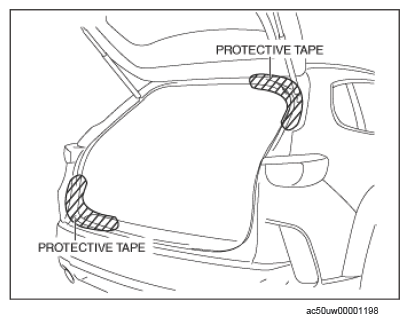

  8. Affix protective tape to the position shown in the figure below.
    G15743197Courtesy of MAZDA MOTORS CORP.

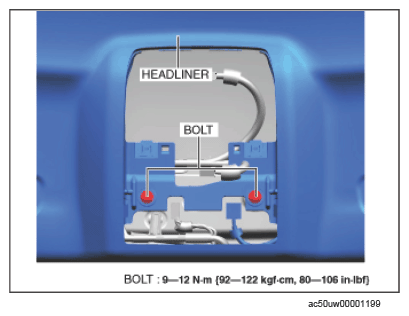

  9. Remove the bolts.
    Fig 1: Headliner And Bolts With Torque Specifications
    G15743198Courtesy of MAZDA MOTORS CORP.

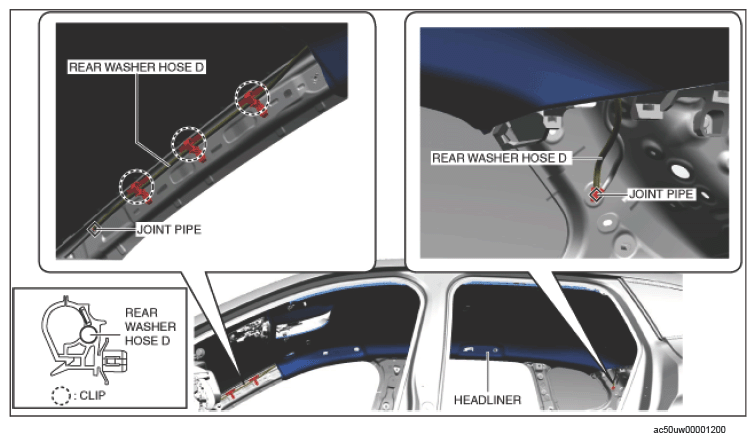

  10. Remove rear washer hose D from the clips.
    G15743199Courtesy of MAZDA MOTORS CORP.
  11. Disconnect rear washer hose D from the joint pipe.

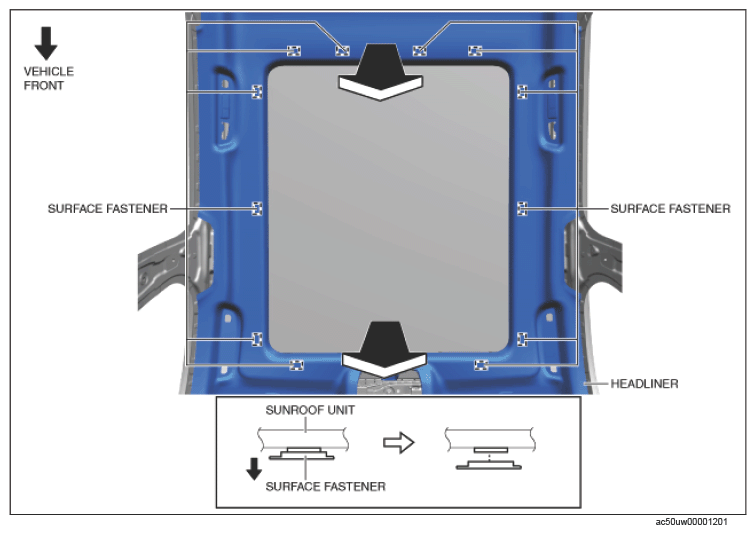

  12. Move the headliner in the direction of the arrow shown in the illustration below to remove the surface fasteners from the sunroof unit. (With sunroof system)
    G15743200Courtesy of MAZDA MOTORS CORP.

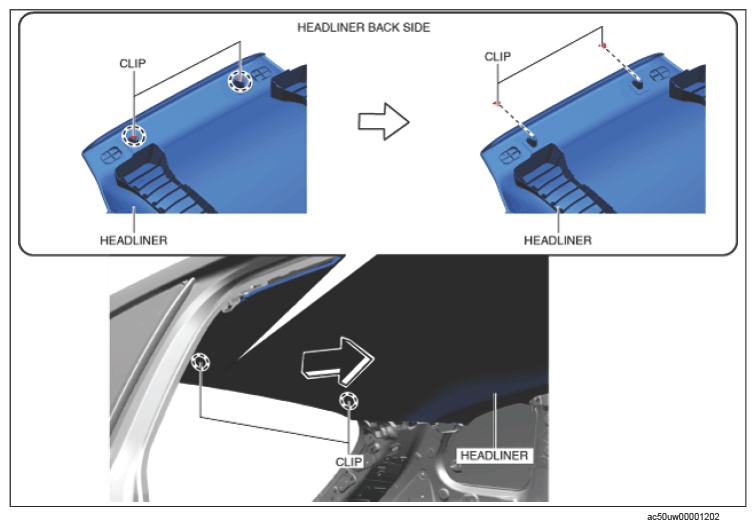

  13. Slide the headliner in the direction of the arrow shown in the figure below and remove the clips from the headliner.
    G15743201Courtesy of MAZDA MOTORS CORP.

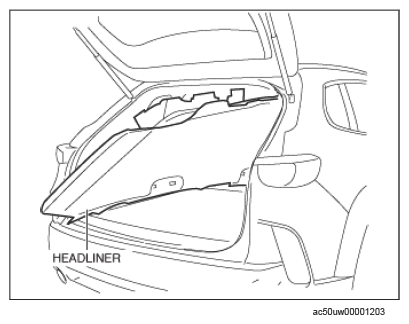

  14. Pull the headliner out of the vehicle through the liftgate opening.
    G15743202Courtesy of MAZDA MOTORS CORP.

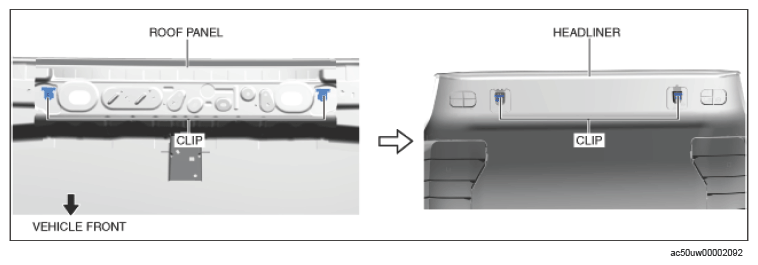

  15. Remove the remaining clips on the roof panel and install them to the headliner.
    G15743203Courtesy of MAZDA MOTORS CORP.
  16. Install in the reverse order of removal. (See HEADLINER INSTALLATION NOTE .)
