Dashboard Disassembly/Assembly

Disassemble in the order shown in the figure below.

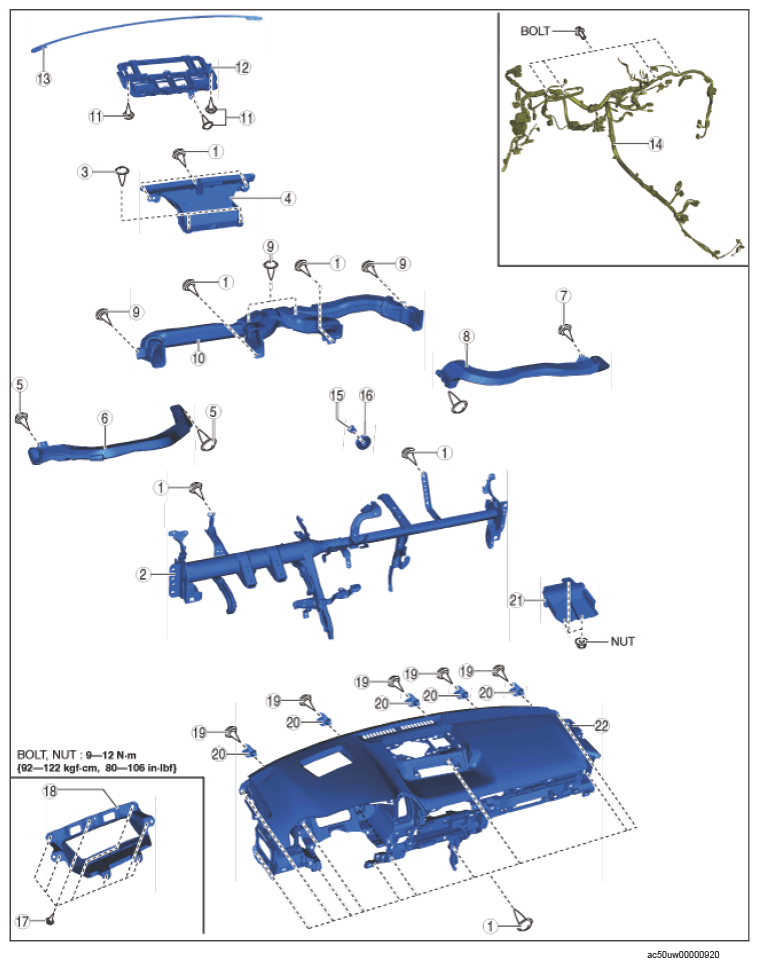

Fig 1: Exploded View Of Dashboard With Torque Specifications

G15743126

Courtesy of MAZDA MOTORS CORP.

DASHBOARD COMPONENT OPERATIONS

Component no.	Refer to
1	Screw
2	Dashboard frame
3	Screw
4	Duct No. 1
5	Screw
6	Demister duct No. 1
7	Screw
8	Demister duct No. 2
9	Screw
10	Center duct
11	Screw
12	Duct No. 2
13	Seal tape
14	Dashboard wiring harness
15	Member junction
16	Cushion rubber
17	Screw
18	Hole cover
19	Screw
20	Guide pin
21	Dashboard bracket
22	Dashboard

Assemble in the reverse order of disassembly.
NOTE:
- When replacing the dashboard, remove the following parts and install them to the new dashboard.
  1. Passenger-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
  2. Front center speaker (With Bose ®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
  3. Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
  4. Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
  5. Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
