Rear Outer Handle Bracket Removal/Installation: Notes

Fully close the rear door glass.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts.
1. Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
3. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
4. Rear outer handle (See REAR OUTER HANDLE REMOVAL/INSTALLATION .)
5. Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

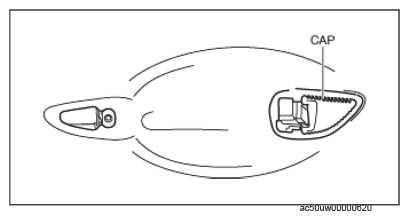

Remove the cap.

Courtesy of MAZDA MOTORS CORP.

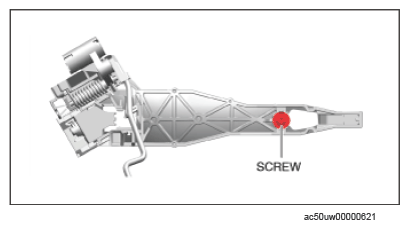

Loosen the screw. (See REAR OUTER HANDLE BRACKET INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.

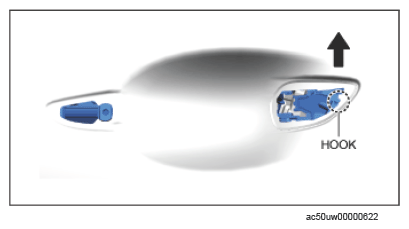

Pull the rear outer handle bracket in the direction of the arrow shown in the figure below and detach the rear outer handle bracket hooks from the body.

Courtesy of MAZDA MOTORS CORP.
Remove the rear outer handle bracket.

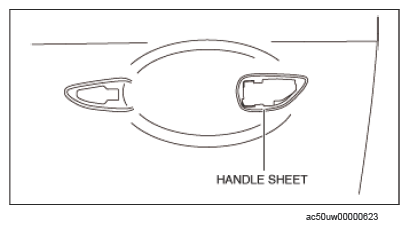

Remove the handle sheet.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
