Front Outer Handle Bracket Removal/Installation
>>

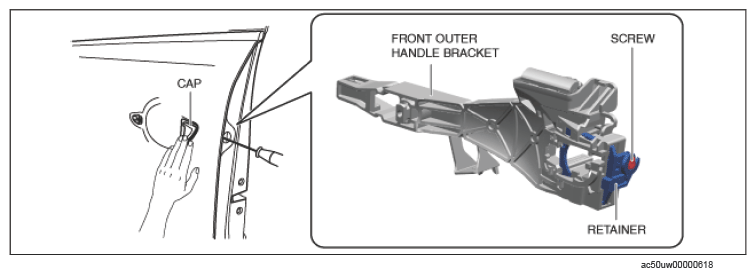

Front Outer Handle Bracket Installation Note
Front Outer Handle Bracket Installation Note
Tighten the screw while holding the cap, and return the retainer to its original position.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
