Front Door Latch And Lock Actuator Removal/Installation: Notes

  1. Fully close the front door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts.
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Power window main switch (to remove from driver's side) (See. POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    3. Power window subswitch (to remove from passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    4. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

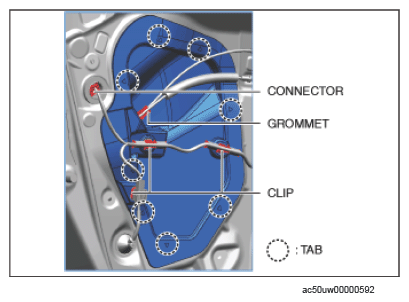

    G15742844Courtesy of MAZDA MOTORS CORP.
  5. Detach the service hole cover tabs from the body using a remover tool.
  6. Remove the clips.
  7. Remove the grommet.
  8. Remove the screws.

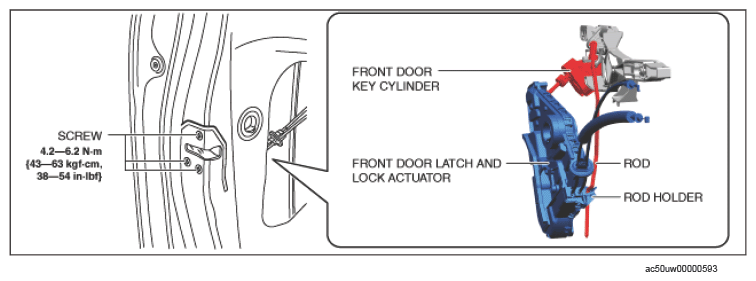

    Fig 1: Front Door Key Cylinder, Rod, Rod Holder And Screws With Torque Specifications
    G15742845Courtesy of MAZDA MOTORS CORP.
  9. Pull out the front door key cylinder from the front door latch and lock actuator. (driver's side)
  10. Pull out the rod from the rod holder.
  11. Remove the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR INSTALLATION NOTE .)
  12. Install in the reverse order of removal.
