Washer Fluid-Level Sensor Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front deflector (RH). (See DEFLECTOR REMOVAL/INSTALLATION .)

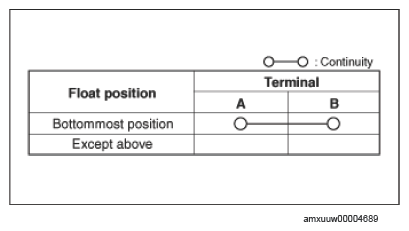

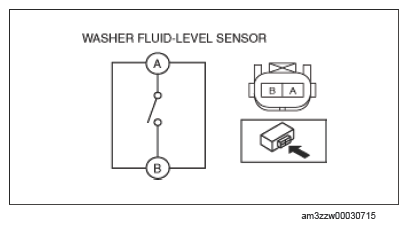

- Verify that the continuity between the washer fluid-level sensor terminals is as indicated in the table.
- If not as indicated in the table, replace the washer fluid-level sensor. (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)
