Rear Wiper Motor Removal/Installation: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts.
1. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
4. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
5. Door lock switch (liftgate) (With door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
6. Power liftgate (PLG) rear switch (with power liftgate (PLG) rear switch) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
7. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

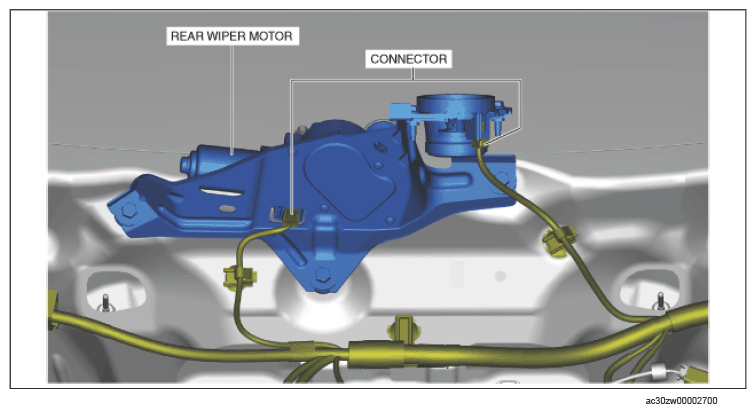

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts. (See BOLT INSTALLATION NOTE .)

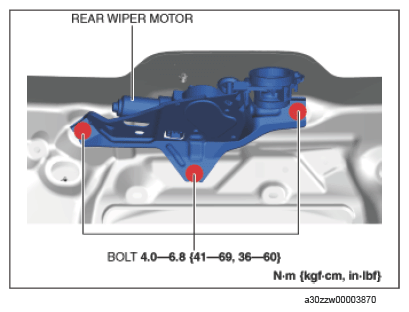

Fig 1: Rear Wiper Motor And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

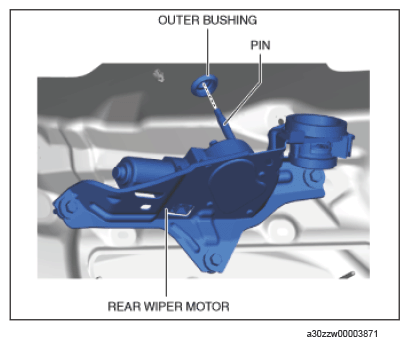

Remove the rear wiper motor by pulling it out of the hole in the outer bushing.

Courtesy of MAZDA MOTORS CORP.

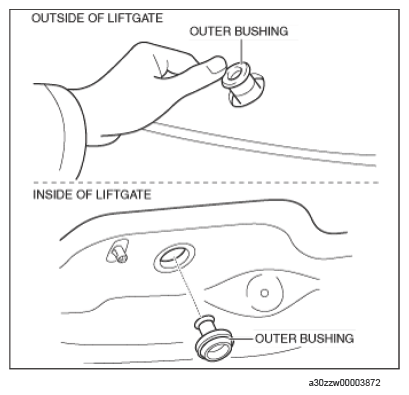

Push the outer bushing from outside the liftgate.

Courtesy of MAZDA MOTORS CORP.
Pull the outer bushing from inside the liftgate and remove it.
Install in the reverse order of removal.

NOTE:

When replacing the rear wiper motor, remove the notification and warning speaker (rear). (With notification and warning speaker) (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION .)
