Condenser Removal/Installation

NOTE:
  • The condenser can be removed without having to take the headliner outside of the vehicle.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the head restraint.
  3. Remove the following parts:
    1. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    2. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
    3. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    5. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    7. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    8. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    9. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
  4. Perform the procedure for temporarily setting the headliner in the vehicle. (See HEADLINER REMOVAL/INSTALLATION .)
  5. Disconnect the connectors.

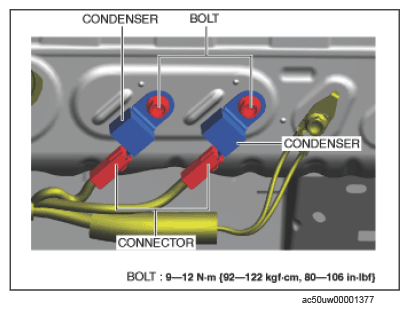

    Fig 1: Condenser, Connectors And Bolts With Torque Specifications
    G15743477Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts.
  7. Remove the condenser.
  8. Install in the reverse order of removal.
