Differential Oil Temperature Sensor Removal/Installation
WARNING:
- Hot differential oil may cause severe burns. Do not perform maintenance while differential oil is hot.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Disconnect the differential oil temperature sensor connector.

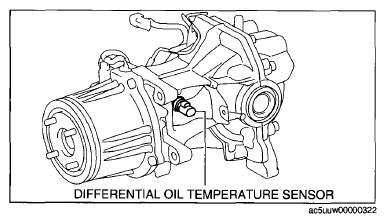

- Remove the differential oil temperature sensor.
- Install the differential oil temperature sensor.
Tightening torque
13-17 N.m {133-173 kgf.cm, 116-150 in.lbf}
- Connect the differential oil temperature sensor connector.
- Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
