Boost Pressure Sensor Removal/Installation (VIN Y)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION (VIN Y) .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

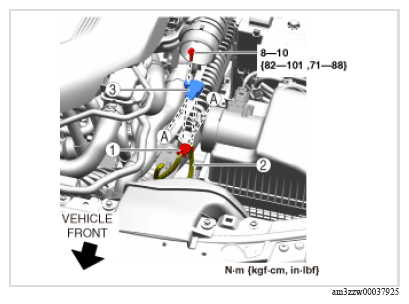

Fig 1: Boost Pressure Sensor Components Location With Torque Specification (VIN Y)

Courtesy of MAZDA MOTORS CORP.

BOOST PRESSURE SENSOR COMPONENT OPERATION

Component no.	Refer to
1	Boost pressure sensor connector
2	Hose
3	Boost pressure sensor
