Air Fuel Ratio (A/F) Sensor Removal/Installation (VIN M): Notes

Special Service Tool (SST)

49 L018 001
O2 sensor wrench

Courtesy of MAZDA MOTORS CORP.

WARNING:

A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

CAUTION:

Do not allow flammable objects such as the taping for bundling a wiring harness to come into contact with the exhaust manifold and silencer.

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

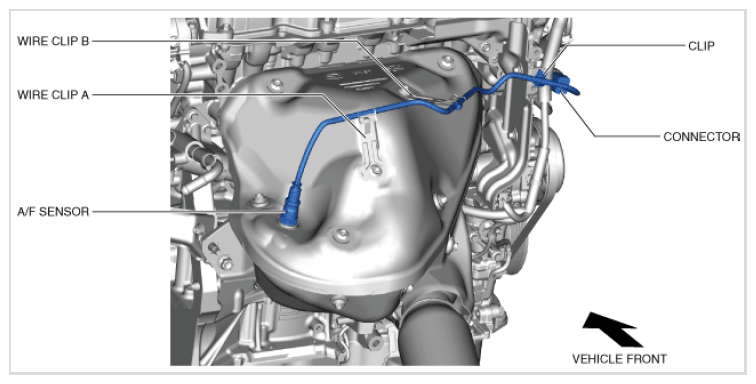

Disconnect the A/F sensor connector.
Remove the clip from the heat insulator.

Courtesy of MAZDA MOTORS CORP.
Remove the wiring harness from the wire clip A and B. (See ASSEMBLY OF WIRING HARNESS TO WIRE CLIP NOTE .)

Courtesy of MAZDA MOTORS CORP.

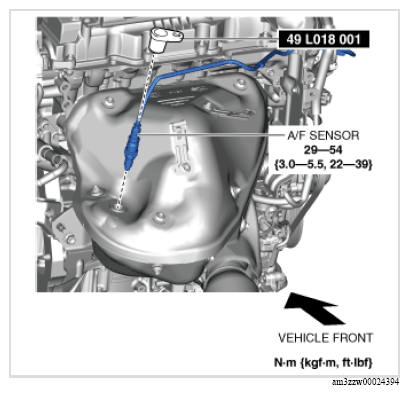

Remove the A/F sensor using the SST.

Fig 1: A/F Sensor With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
