Up Switch: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

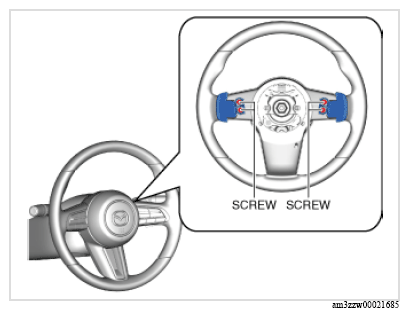

Remove the screw.

Courtesy of MAZDA MOTORS CORP.

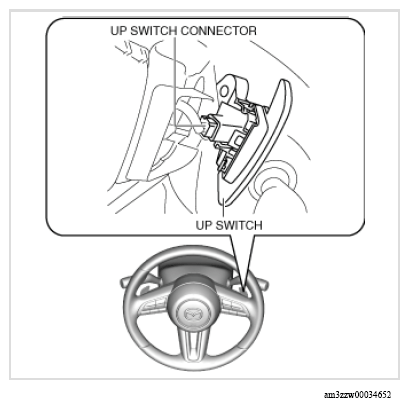

Disconnect the up switch connector.

Courtesy of MAZDA MOTORS CORP.
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

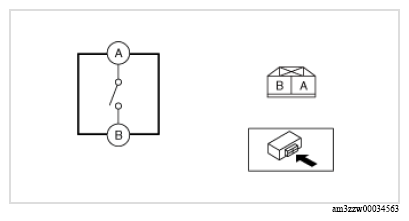

Verify that the continuity between up switch component terminals A and B.

Courtesy of MAZDA MOTORS CORP.

If there is any malfunction, replace the up switch. (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [EV6AX-EL] .)
