Intermediate Shaft Removal Note

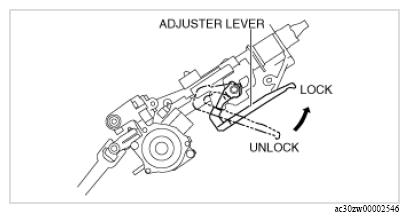

  1. Lock the adjuster lever.
    G16375446Courtesy of MAZDA MOTORS CORP.

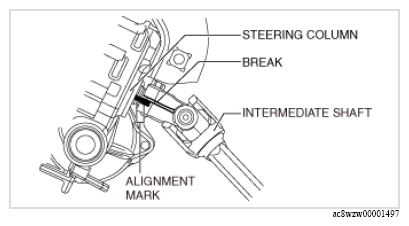

  2. Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.
    G16375447Courtesy of MAZDA MOTORS CORP.

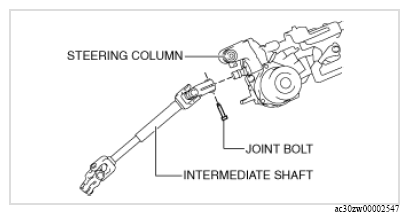

  3. Remove the joint bolt.
    G16375448Courtesy of MAZDA MOTORS CORP.
  4. Remove the intermediate shaft from the steering column.
