Generator Disassembly/Assembly (VIN M)

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

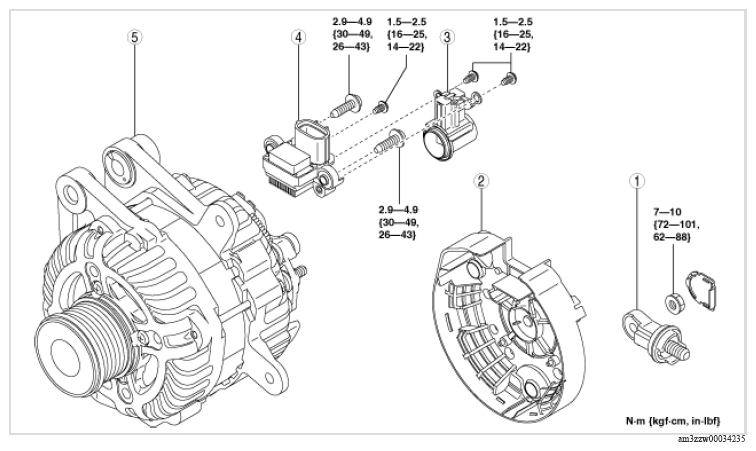

Fig 1: Generator Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

GENERATOR COMPONENT OPERATIONS

Component No.	Refer to
1	Terminal B component
2	Rear cover
3	Brush holder
4	Regulator assy
5	Generator
