Battery Removal/Installation: Notes
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

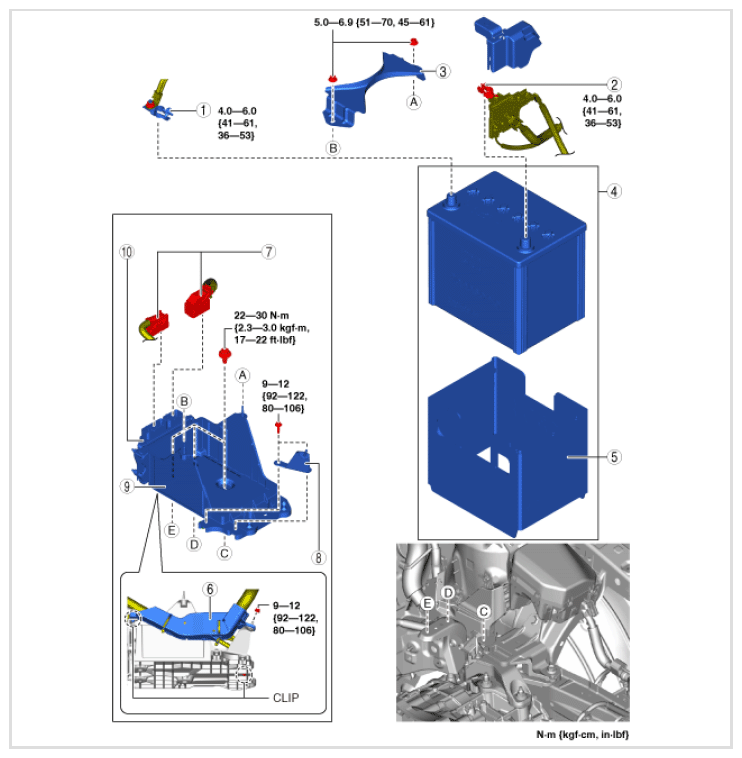

BATTERY COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) (See NEGATIVE BATTERY TERMINAL CONNECTION NOTE .) |
| 2 | Positive battery terminal (See POSITIVE BATTERY TERMINAL CONNECTION NOTE .) |
| 3 | Battery clamp |
| 4 | Battery and battery box (See BATTERY AND BATTERY BOX REMOVAL NOTE .) |
| 5 | Battery box (See BATTERY BOX INSTALLATION NOTE .) |
| 6 | Wiring harness (See WIRING HARNESS DISCONNECTION NOTE .) |
| 7 | PCM connector (See PCM CONNECTOR CONNECTION NOTE .) |
| 8 | Bracket |
| 9 | Battery tray and PCM component (See BATTERY TRAY AND PCM COMPONENT INSTALLATION NOTE .) |
| 10 | PCM (See PCM REMOVAL/INSTALLATION (VIN M) .) |
