VIN M

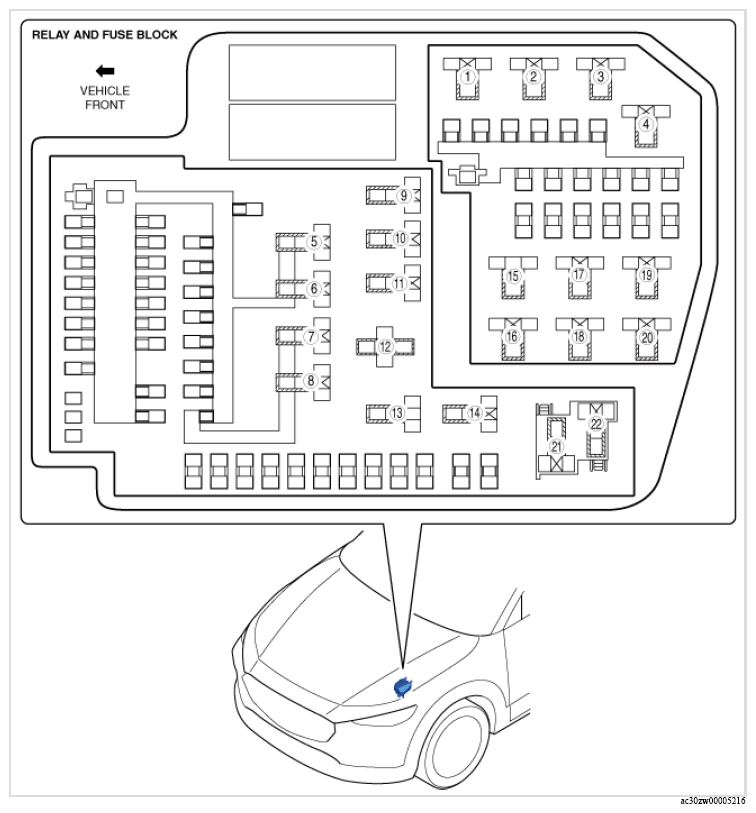

RELAY COMPONENT OPERATIONS
| Component no. | Refer to |
|---|---|
| 1 | Windshield wiper de-icer relay |
| 2 | - |
| 3 | Main relay |
| 4 | - |
| 5 | IG1 relay No. 1 |
| 6 | IG1 relay No. 2 |
| 7 | Starter relay |
| 8 | ACC relay |
| 9 | Rear window defogger relay |
| 10 | Headlight relay |
| 11 | Horn relay |
| 12 | Blower relay |
| 13 | - |
| 14 | Ignition relay (IG1_STAB) |
| 15 | Sub relay |
| 16 | Fuel pump relay |
| 17 | Electric variable valve timing relay |
| 18 | - |
| 19 | A/C relay |
| 20 | Electric AT oil pump relay |
| 21 | Cooling fan relay No. 2 |
| 22 | Cooling fan relay No. 1 |
