Power Window SUBSWITCH Removal/Installation: Rear

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Affix the protective tape to the position shown in the figure to prevent scratches and damage.

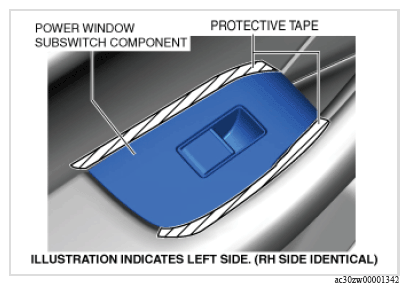

    G16376206Courtesy of MAZDA MOTORS CORP.
  3. Using a remover tool, remove the tab shown in the figure.

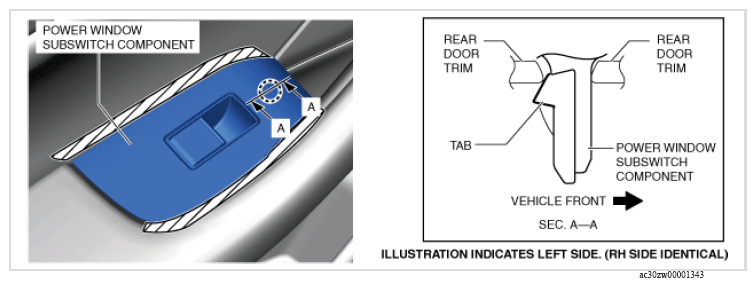

    G16376207Courtesy of MAZDA MOTORS CORP.
  4. Using a remover tool, remove the tabs shown in the figure.

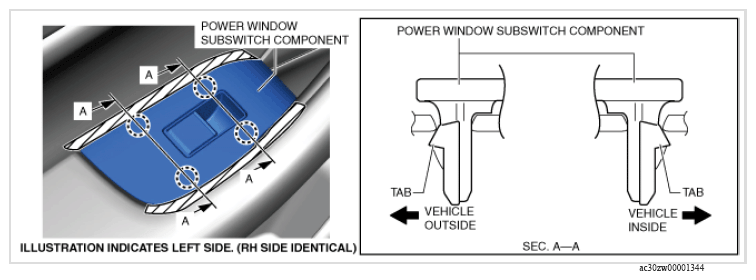

    G16376208Courtesy of MAZDA MOTORS CORP.
  5. Move the power window subswitch component in the direction of the arrow and detach the guide.

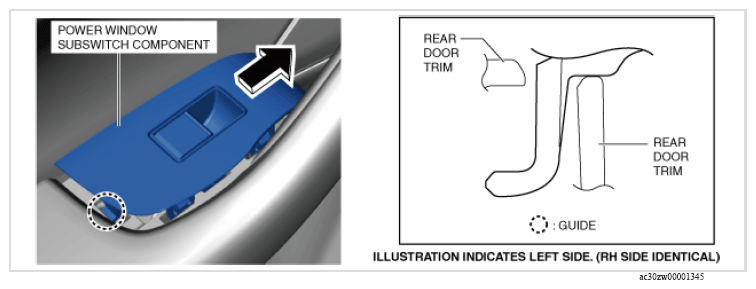

    G16376209Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connector.

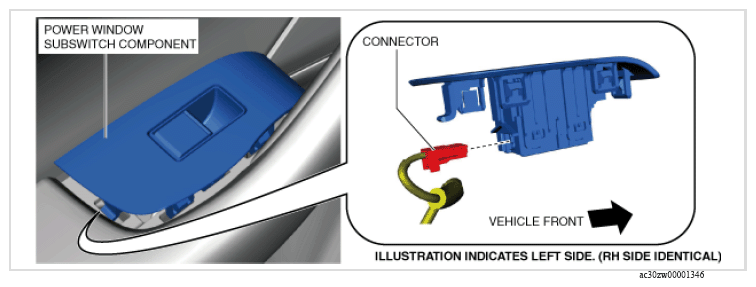

    G16376210Courtesy of MAZDA MOTORS CORP.
  7. Remove the power window subswitch component from the rear door trim.
  8. Using a tape-wrapped flathead screwdriver, move the power window subswitch cover end in the direction of arrow (1) shown in the figure, and detach the tab while moving the power window subswitch in the direction of arrow (2).

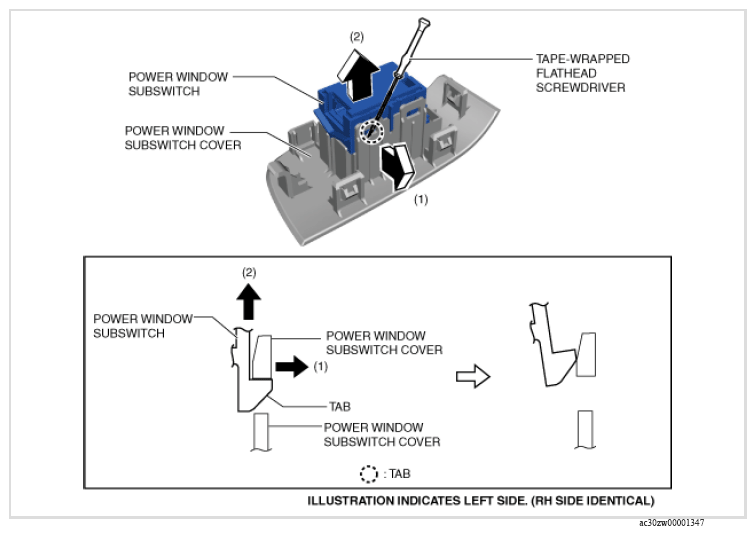

    G16376211Courtesy of MAZDA MOTORS CORP.
  9. Detach the tabs in the same manner as Step 8.

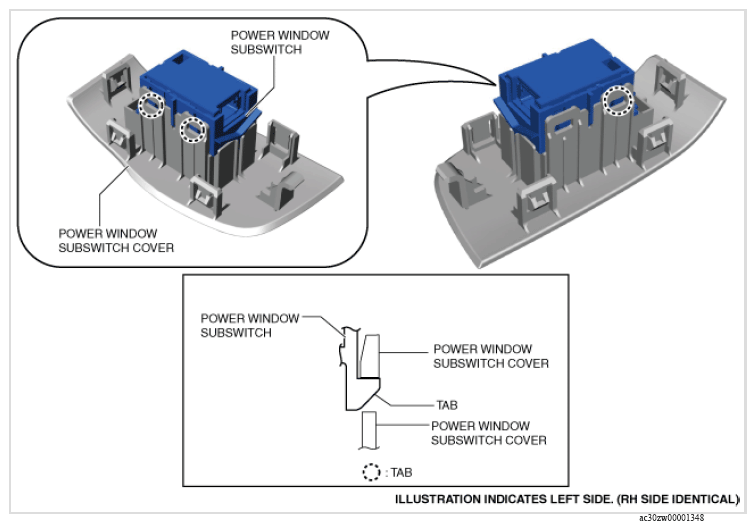

    G16376212Courtesy of MAZDA MOTORS CORP.
  10. Remove the power window subswitch from the power window subswitch cover.
  11. Install in the reverse order of removal.
