Ignition Coil/Ion Sensor Removal/Installation: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

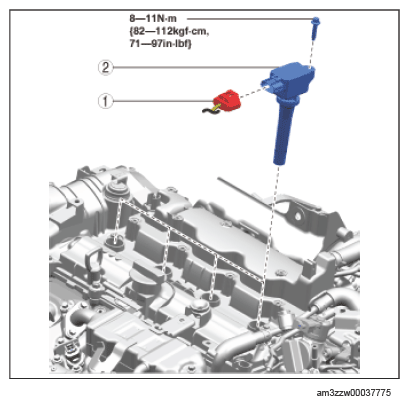

Courtesy of MAZDA MOTORS CORP.
COMPONENT OPERATIONSComponent No. Refer to 1 Connector 2 Ignition coil/ion sensor
(See IGNITION COIL/ION SENSOR REMOVAL NOTE .)
