Mounting Rubber Installation Note

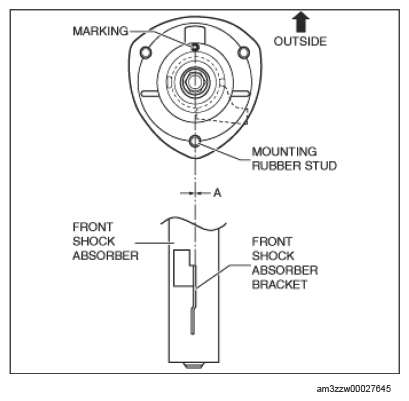

  1. Install the mounting rubber so that the mounting rubber stud and the front shock absorber bracket are in position A shown in the figure below.
    G14580258Courtesy of MAZDA MOTORS CORP.

    A: 0°±5°

    NOTE:
    • Assemble the mounting rubber so that the marking faces the outside of the vehicle.
