Bump Stopper Installation Note

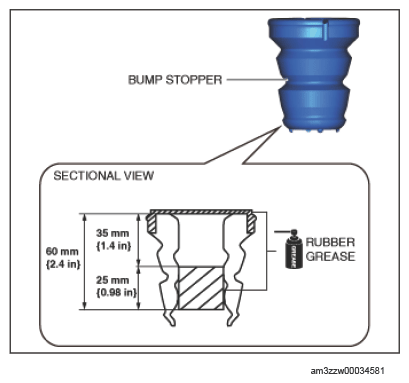

  1. Apply grease to the bump stopper as shown in the figure below.
    G14580259Courtesy of MAZDA MOTORS CORP.
  2. Assemble the bump stopper to the front shock absorber.
