DTC P025C-00: Fuel Pump Control Module System: On-Board Diagnostic Result Low Input

P025C-00: (PCM - SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Fuel pump control module system: On-board diagnostic result low input
Detection condition	There are no on-board diagnostic results received from the fuel pump control module (voltage excessively low).
Fail-safe	Not applicable
Possible cause	Malfunction in wiring harness (including connector/terminal) between fuel pump control module and PCM (See CIRCUIT INSPECTION .) (See CONNECTOR INSPECTION .) Fuel pump control module malfunction (Refer to FUEL PUMP CONTROL MODULE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] in service information.) PCM malfunction (Refer to PCM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] in service information.)
Repeatability verification procedure	Clear the DTC recorded in the memory. (See CLEARING DTC .) Perform the KOEO or KOER self-test. (See DTC INSPECTION .)

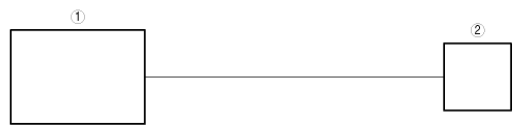

Courtesy of MAZDA MOTORS CORP.
1	PCM
2	Fuel pump control module
